E30 Series

Pittman E30C/E30D Series Encoders
E30C Series Encoders
E30C and E30D optical incremental encoders were developed for volume OEM precision motion control applications. The E30 offers a wide range of outputs, resolutions and connection solutions in a compact 30mm by 8mm size.
       Modular and bearing construction options. Bearing style encoders provide significant performance upgrades in demanding applications. Factory installed and tested for quick start-up.

Features:
  • Resolutions from 200 to 2048
  • TTL Quadrature output
  • Frequency response to 220 kHz
  • Low power consumption, 5V @ 20mA max
  • Locking connector

Compatible Motors:
DC030B
DC030C
DC040B
DC054B
EC033A
EC044A
EC042B
EC057C
ES030A
ES040A
ES050A


PLEASE NOTE: Encoders are not sold separately, only sold with our motors.

  • Specifications +



    ENCODER DATA SYMBOL UNITS E30C E30D
    Available Resolutions - - 200, 250, 256, 400, 500 500, 512, 1000, 1024, 2000, 2048
    Output - - 2-Channel Quadrature 2-Channel Quadrature with Index
    Output Interface - - TTL Compatible TTL Compatible
    Supply Voltage Vcc VDC 4.5 to 5.5 4.5 to 5.5
    Supply Current Icc mA 20 max 20 max
    High Level Output Voltage VOH V 2.4 min 2.4 min
    Low Level Output Voltage VOL V 0.4 max 0.4 max
    Max. Operating Frequency fmax kHz 40 (200-500 CPR) 55 (500-512 CPR)
    110 (1000-1024 CPR)
    220 (2000-2048 CPR)
    Operating Temperature θmax °C -20 to +85 -20 to +85
    Encoder Weight (Mass) WE oz 0.2 0.2
    g 5.6 5.6

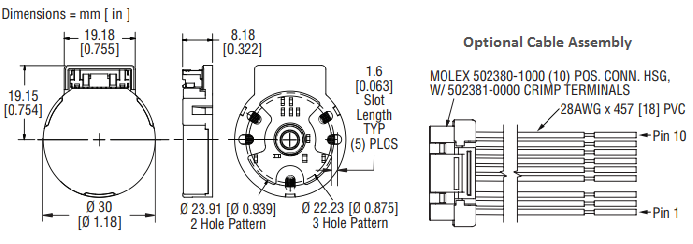

  • Dimensional Drawings +






    Connection Chart
    PIN COLOR E30C E30D E30C1 E30D1
    1 Black Encoder Ground Encoder Ground
    2 White Vcc Vcc
    3 Green/White - - Index I̅
    4 - - -
    5 Blue/White - Channel A̅
    6 Blue Channel A Channel A
    7 Violet Channel B Channel B
    8 Violet/White - Channel B̅
    9 Green - Index - Index
    10 Green/Yellow Motor Ground Motor Ground
    E30C1 & E30D1: Optional Differential LD connections shown in grey
