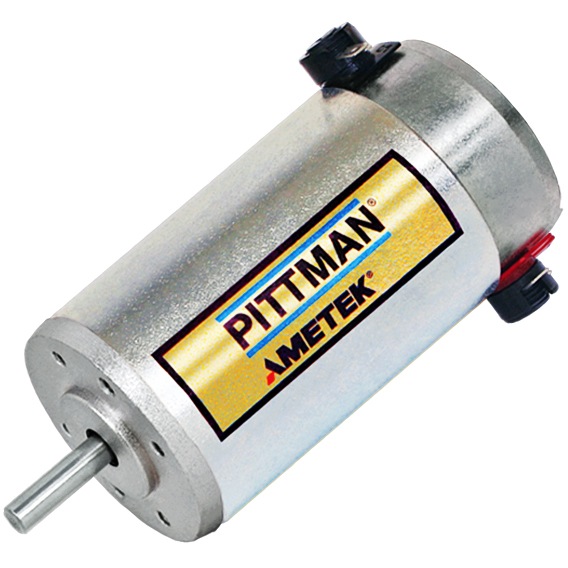

Pittman brush commutated DC motors have a wide range of frame sizes and magnetic technologies from 22 to 54mm diameter and power ratings from 3 to 94 watts. These motors are designed to offer smooth low speeds, quiet operation and long life.
|
Features:
- Spur and Planetary gears
- Optical Encoders from 50 to over 8000 counts of resolution
- Fail safe brakes in both rear and front mounting options
- Fully customizable per your requirements
Click here for our DC Motor Checklist. Simple questionnaire to help properly select a DC Motor for your application.
Need additional assistance?
Click here - We are here to help.
Performance Attributes
|
Diameter |
Continuous Torque |
Rated Power
|
Max Speed |
Voltage |
| Series |
mm |
inch |
Nm |
oz-in |
watts
|
RPM |
Vdc |
DC022C
|
22 |
0.87 |
0.0057 - 0.014
|
0.81 - 2.0
|
2.7 - 8.6
|
10,000
|
0 - 36
|
DC026C
|
26 |
1.02 |
0.014 - 0.022
|
1.9 - 3.2
|
5.8 - 13 |
10,000
|
0 - 48
|
DC030B
|
30 |
1.18 |
0.011 - 0.018
|
1.6 - 2.6
|
5.1 - 11 |
10,000
|
0 - 48
|
DC030C
|
30 |
1.18 |
0.018 - 0.060
|
2.7 - 8.5
|
7 - 26 |
10,000
|
0 - 48
|
DC032A
|
32 |
1.25 |
0.027 - 0.034
|
3.8 - 4.9
|
6.7 - 11 |
6,500
|
0 - 48
|
DC040B
|
40 |
1.58 |
0.017 - .081
|
2.4 - 12
|
6 - 34
|
8,000
|
0 - 48
|
DC054B
|
54 |
2.13 |
0.071 - 0.35
|
10 - 50
|
19 - 94
|
6,000
|
0 - 80
|
| DC057A |
57 |
2.25 |
0.21 - 0.40 |
30 - 57 |
5.7 - 13 |
6,000 |
0 - 48 |
| DC083A |
83 |
3.25 |
0.56 - 1.62 |
80 - 230 |
165 - 371 |
6,000 |
0 - 90 |
