Q-V Series

Pittman Q/V Series Encoders
Q / V Series Encoder
The Q & V high performance incremental encoders are transmissive devices with integrated bearing and isolating spring mount. The encoders are identical except for the mounting spring is configured for different motors.


Features:
  • Resolutions from 1000 to 5000
  • Differential line driver is standard
  • Frequency response to 500 kHz
  • Rugged mechanical design
  • Good for higher temperature
  • Shielded cable

Compatible Motors:
EC057A
EA090A

PLEASE NOTE: Encoders are not sold separately,  only sold with our motors.


  • Specifications +



    ENCODER DATA SYMBOL UNITS Q1, Q3, Q5, Q8
    Available Resolutions - - 1000, 2000, 2500, 5000
    Output - - 2-Channel Quadrature with index
    Output Interface - - TTL Compatible
    Supply Voltage Vcc VDC 4.75 to 5.25
    Supply Current Icc mA 125 max
    Max. Operating Frequency fmax kHz 500
    Operating Temperature θmax °C -20 to +100

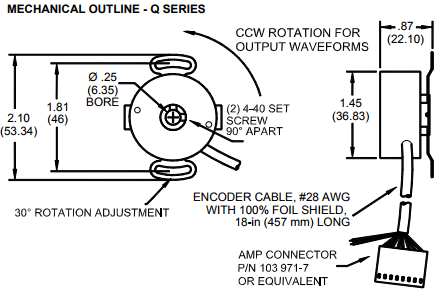

  • Dimensional Drawings +






    Connection Chart
    PIN COLOR Q
    1 Red Vcc
    2 Black Encoder Ground
    3 Brown Channel A
    4 White Channel A̅
    5 Blue Channel B
    6 Green Channel B̅
    7 Orange Index I
    8 Yellow Index I̅
    N/C Black / White Case Ground
    N/C Drain Wire Cable Shield
