RGW06

RGW06 Non-Motorized Linear Rail
The Non-Motorized RGW06 Linear Rail is available with two different drive input options, drive shaft only or inline motor mount. Rails have parallel slots which can be used for a flag, sensor bracket or other added components. Contact an Applications Engineer for any technical support needed.
  • Specifications +


    Lead Lead Code Typical Drag Torque Torque to Move Load Design Load Screw Inertia
    Rail Series in. (mm) oz.-in. (Nm) oz. in./lbs. (NM/kg) lbs. (kg) oz. in.sec.2/in. (Kgm2/m)
    RGW06K - A0100 - XXX .100 (2.54) 100 4.0 (.03) 1.0 (.016) 35 (16) 1.5 x 10-5 (4.2 x 10-6)
    RGW06K - A0200 - XXX .200 (5.08) 200 5.0 (.04) 1.5 (.023) 35 (16) 1.5 x 10-5 (4.2 x 10-6)
    RGW06K - A0500 - XXX .500 (12.70) 500 6.0 (.04) 2.5 (.039) 35 (16) 1.5 x 10-5 (4.2 x 10-6)
    RGW06K - A1000 - XXX 1.000 (25.40) 1000 7.0 (.05) 4.5 (.070) 35 (16) 1.5 x 10-5 (4.2 x 10-6)
  • Dimensional Drawings +


    Please note: Metric numbers are for reference only.

    RGW06 A B C D D1 F G H I* K L1 L2 N
    (inch) (0.60) (1.25) (0.1875) (2.00) (1.13) (2.00) (1.500) (0.750) 6-32 (1.2) (0.80) (0.80) (0.500)
    mm 15.2 31.75 4.762 50.8 28.6 50.8 38.10 19.05 UNC 30 20.3 20.3 12.70
    RGW06 P Q R
    S T U V W X Y Z1 Z2 Z3
    (inch) (1.46) (1.04)  (.80)
    (0.83) (0.51) (0.63) (1.4) 6-32 (0.50) (0.170) (0.14) (0.25) (0.14)
    mm 37.1 26.4 20.3
    21.2 13.0 16 36 SHCS 12.7 4.32 3.6 6.4 3.6
    * Metric carriage hold sizes available: M3, M4, M5 and M6

    Recommended for horizontal loads up to 35 lbs (156 N)
    RGW06 Non-Motorized Rail Dimensional Drawing
    RGW-06 Motor Mount Type

    RGW06 A D D1 D2 F G H I* L1 L2 L3 N
    (inch) (0.60) (2.00) (1.13) (1.67) (2.00) (1.500) (0.750) 6-32 (0.80) (1.93) (0.31) (0.500)
    mm 15.2 50.8 28.6 42.2 50.8 38.10 19.05 UNC 20.3 48.9 7.9 12.70
    RGW06 N1 P Q R
    S T U V V1 Z1 Z2 Z3
    (inch) (1.50) (1.46) (1.04) (.78)
    (0.83) (0.51) (0.63) (1.39) (1.7) (0.14) (0.25) (0.14)
    mm 38.1 37.08 26.416 19.8
    21.2 13.0 16.0 35.3 43 3.6 6.4 3.6
    * Metric carriage hold sizes available: M3, M4, M5 and M6

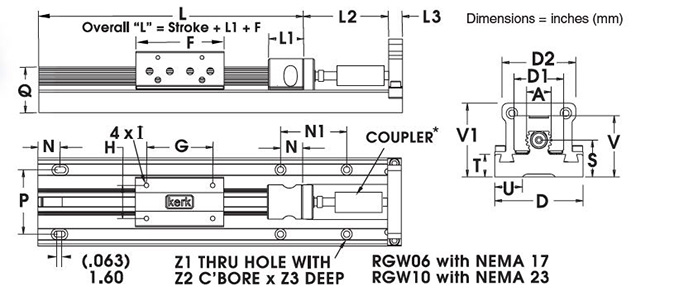

    RGW06 Non-Motorized Rail with NEMA 17 Dimensional Drawing
    *NOTE: The coupling shown in the Dimensional Drawing is not included.
  • Lubrication +


    Kerk RGW Linear Guides have Kerkote® TFE on all critical surfaces.

    All moving surfaces include Kerkite® engineered polymers running on Kerkote® TFE coating, providing a strong, stable platform for a variety of linear motion applications.

    Kerkote TFE is a soft coating, a long-term dry lubricant that is optimized for softer plastics like acetyls and nylons, with or without mechanical reinforcement. Lubrication to the nut / lead screw interface occurs by the nut picking up Kerkote TFE particles from the coating as well as from the migration of the internal lubricant within the plastic nut. The lubricant, although solid, also has some “spreading” ability as in fluid lubricants. Kerkote TFE coated screws provide the maximum level of self-lubrication and should not be additionally lubricated or used in environments where oils or other lubricant contamination is possible.
  • Sensor Mounting Kit +


    Please contact our Application Engineers directly for assistance with a Sensor Mounting Kit. email: info.haydonkerk@ametek.com
  • Customize +


    Haydon Kerk can custom-design and manufacture unique motorized RGS linear rails solutions to your equipment requirements. Special motor attributes, rail lengths, multiple carriages, alternate lead screws, lubrication, encoders and integrated drives are just some of the typical adaptations engineered to customer needs. Every Haydon Kerk linear rail product is supported by an experienced technical team recognized for innovation, customization, and dedicated customer service.
  • Linear Guide only +


    Kerk RGW Linear Guides provide a strong, stable platform for a variety of linear motion applications. The RGW Linear Guide is designed to easily mount to any flat surface, or bridge free spans, with a convenient, easy-access carriage. The splined aluminum profile, with Kerkote® TFE coating, combines low friction linear guidance with torsional stability. This proven combination of materials assures exceptionally long life without the need for adjustment, lubrication or maintenance. The simplicity of the RGW Linear Guide makes it both easy to use and a great value. The Kerk® RGW Linear Guides are perfect companions to the Kerk® RGW series of screw-driven linear slides.

    RGW06 A D D1 F G H I* N
    (inch) (0.60) (2.00) (1.13) (2.00) (1.500) (0.750) 6-32 (0.500)
    mm 15.2 50.8 28.6 50.8 38.10 19.05 UNC 12.70
    RGW06 P Q S T U V Z1 Z2 Z3
    (inch) (1.460) (1.04)  (0.83) (0.51) (0.63) (1.4) (0.14) (0.25) (0.14)
    mm 37.08 26.4 21.2 13.0 16.0 36 3.6 6.4 3.6
    *Metric carriage hole sizes available: M3, M4, M5 and M6

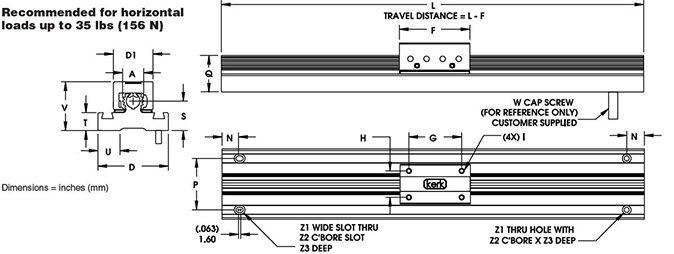

    RGW06 Guide Only Dimensional Drawing

    Please note: Metric numbers are for reference only.

  • Part Number Guide +



    RG

    S

    06

    K

    -

    A

    0100

    -

    XXX

    Prefix

    Frame Style

    Frame Size Load

    Coating



    Drive/

    Mounting

    Nominal Thread Lead Code



    Unique Identifier

    RG=

    Rapid Guide Screw

    S=Standard
    W=Wide sensor mount capability

    06=35 lbs (156 N) (Maximum static load)

    K=TFE Kerkote
    X=Special (example: Kerkote with grease)



    A=None
    B=In-line screw motor mount

    0000=No Screw
    0100=.100-in (2.54)
    0200=.200-in (5.08)
    0500=.500-in (12.70)
    1000=1.000-in
    (25.4)



    Suffix used to identify specific motors or a proprietary suffix assigned to a specific customer application. The identifier can apply to either a standard or custom part


    Carriage holes available in Metric sizes
    M3
    M4
    M5
    M6

    NOTE: Dashes must be included in Part Number (–) as shown above. For assistance call our Engineering Team at 203 756 7441.
