Size 8 21mm Double Stack

Size 8 Double Stack Stepper Motor Linear Actuator
The Size 8 double stack by Haydon Kerk Motion Solutions is a 21mm stepper motor linear actuator.  Size 8, 21000 double stack series linear actuators are available in three designs - captive, non-captive and external linear versions.  Available in a variety of resolutions, ranging from 0.0025mm to 0.04mm per step.  The size 8 double stack series stepper motor linear actuator delivers force of up to 17 lbs (75N).  Typical applications include medical equipment, semiconductor handling, valve control, X-Y tables, hand held instruments, or wherever precise linear motion is required.

  • Specifications +


    Part No. Captive 21M4(X)-V
    Non-captive 21L4(X)-V
    External Lin. E21M4(X)-V
    Wiring Units Bipolar
    Step Angle
    Degree 1.8°
    Winding Voltage VDC 2.5 5 7.5
    Current/Phase A rms 1.32 0.65 0.43
    Resistance/Phase ohms () 1.9 7.7 1.73
    Inductance/Phase mH 0.8 3.2 6.1
    Power Input Watts 6.5
    Rotor Inertia
    gcm2 2.6
    Insulation Class Class B (Class F available)
    Weight oz (g) 2.4 (68)
    Insulation resistance M() 20
    Standard motors are Class B rated for a maximum temperature of 130°C (155°C for Class F)
    Linear Travel / Step
    Screw Ø inches mm Code ID
    0.14" (3.56 mm) 0.000098* 0.0025 AA
    0.00012 0.0030*  N
    0.00019* 0.005  AB
    0.00024 0.006* K
    0.00039* 0.01 AC
    0.00048 0.0121* J
    0.00078* 0.02 AD
    0.00157* 0.04 AE
    * Values Truncated

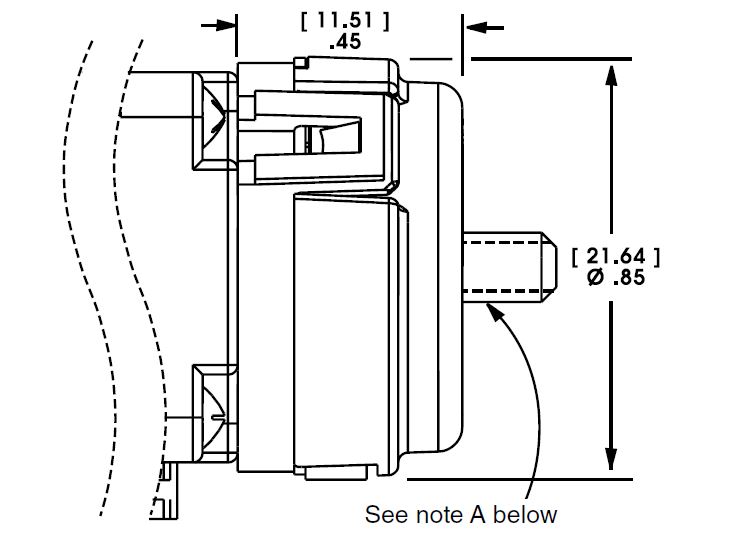

  • Dimensional Drawings +


    CAPTIVE STEPPER MOTOR

    Size 8 Double Stack Series 21000
    Captive Lead-Screw Linear Actuator

    Size 8 Double Stack Captive Dwg





    NON-CAPTIVE STEPPER MOTOR

    Size 8 Series 21000 Non-Captive Linear Actuator

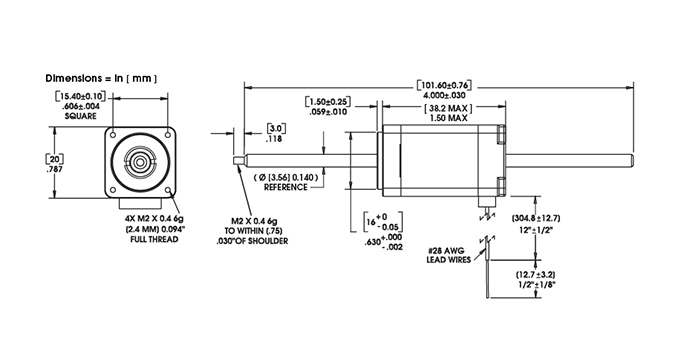

    Size 8 Double Stack Non-Captive Dwg




    EXTERNAL STEPPER MOTOR


    Size 8 Series 21000 External Linear Actuator

    Size 8 Double Stack External Linear Actuator Dwg
  • Performance Curves +


    FORCE vs. PULSE RATE
    Chopper, Bipolar, 100% Duty Cycle Ø .14 (3.56) Lead Screw
    8:1 Motor Coil to Drive Supply Voltage

    Size 8 Stepper Motor Force vs Pulse Curve

    FORCE vs. LINEAR VELOCITY
    Chopper, Bipolar, 100% Duty Cycle Ø .14 (3.56) Lead Screw
    8:1 Motor Coil to Drive Supply Voltage

    Size 8 Stepper Motor Force vs Velocity Curve


    * Care should be taken when utilizing these screw pitches to ensure that the physical load limits to the motor are not exceeded. Please consult the factory for advice in selecting the proper pitch for your application.

    NOTE:  All chopper drive curves were created with a 5 volt motor and a 40 volt power supply.

    Ramping can increase the performance of a motor either by increasing the top speed or getting a heavier load accelerated up to speed faster.  Also, deceleration can be used to stop the motor without overshoot.

    With L/R drives peak force and speeds are reduced, using a unipolar drive will yield a further 30% force reduction.
  • Wiring Diagram and Stepping Sequence +


    Bipolar Wiring Diagram

    Stepping Sequence- Hybrid Linear Actuator

    Bipolar Q2-Q3 Q1-Q4 Q6-Q7 Q5-Q8
    Step . . . .
    1 ON OFF ON OFF
    2 OFF ON ON OFF
    3 OFF ON OFF ON
    4 ON OFF OFF ON
    1 ON OFF ON OFF
  • Part Number Guide +



    E

    21

    M

    4

    N

    -

    2.5

    -

    910

    Prefix
    (include only when
    using the following)

    Series Number
    Designation

    Style

    Coils

    Code ID
    Resolution Travel/Step


    Voltage


    Suffix

    A=A Coil (See AC Synchronous Data Sheet)
    E=External
    K=External with
    40° thread form

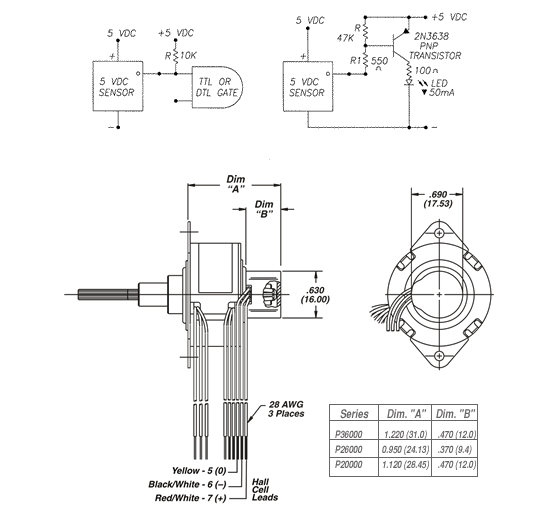

    P=Proximity Sensor

    21=21000 (Series numbers
    represent approximate width of motor body)

    L=1.8° Non-captive
    M=1.8° Captive or External (use “E” or “K” Prefix for External version)

    4=Bipolar
    (4 wire)


    AA*=.000098-in (.0025)

    N=.00012-in (.0030)

    AB=.00019-in (.005)

    K=.00024-in (.006)

    AC=.00039-in (.01)

    J=.00048-in (.0121)

    AD=.00078-in (.02)

    AE=.00157-in (.04)

    *TFE not available


    2.5=2.5 VDC

    05=5 VDC
    7.5=7.5VDC
    Custom V available


    Example:
    910=1in
    (Refer to Stroke chart on Captive motor series product page.)
    Suffix also represents:
    800=Metric
    900=External Linear with grease and flanged nut-XXX=Proprietary suffix assigned to a specific customer application. The identifier can apply to either a standard or custom part.


    NOTE: Dashes must be included in Part Number (–) as shown above. For assistance call our Engineering Team at 203 756 7441.
